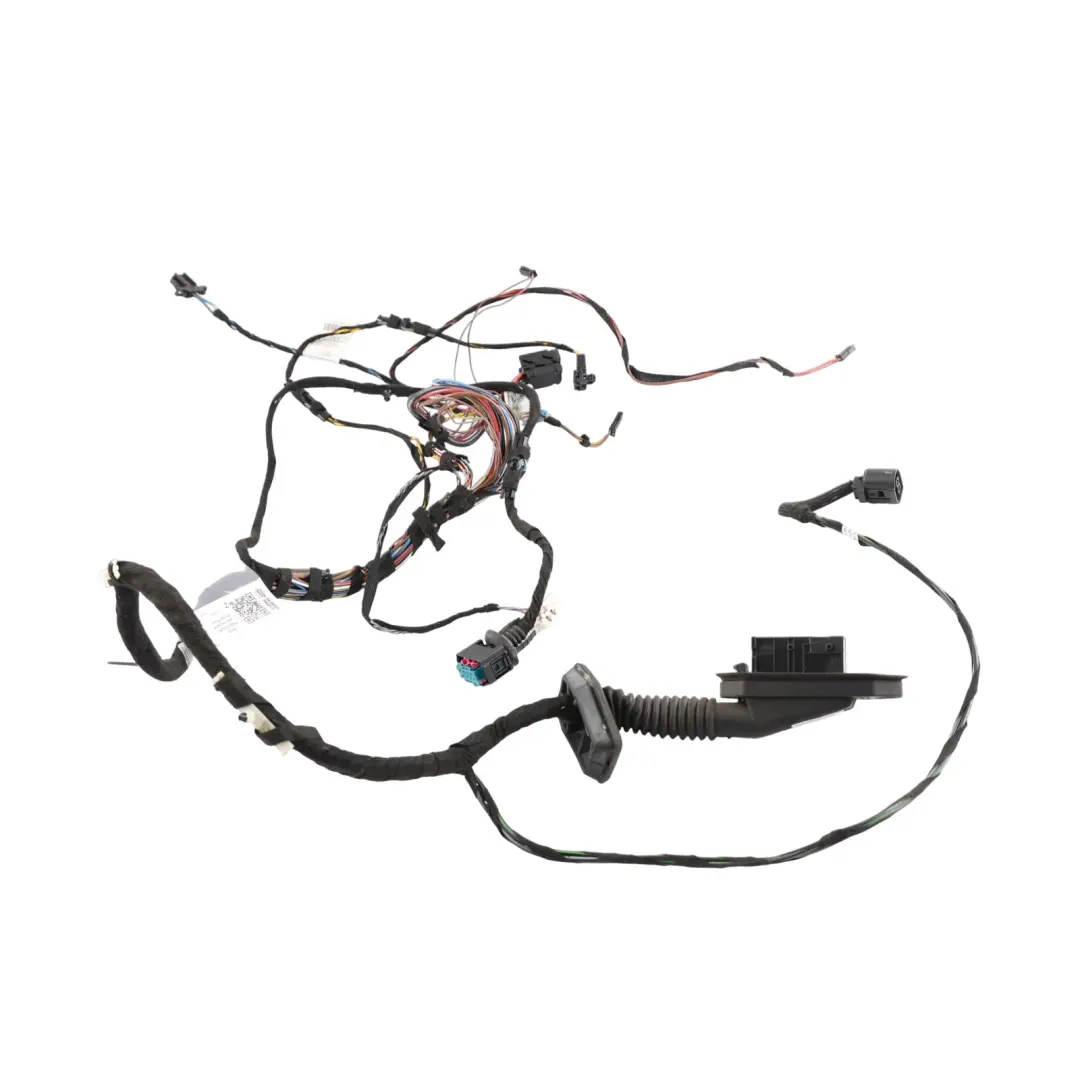

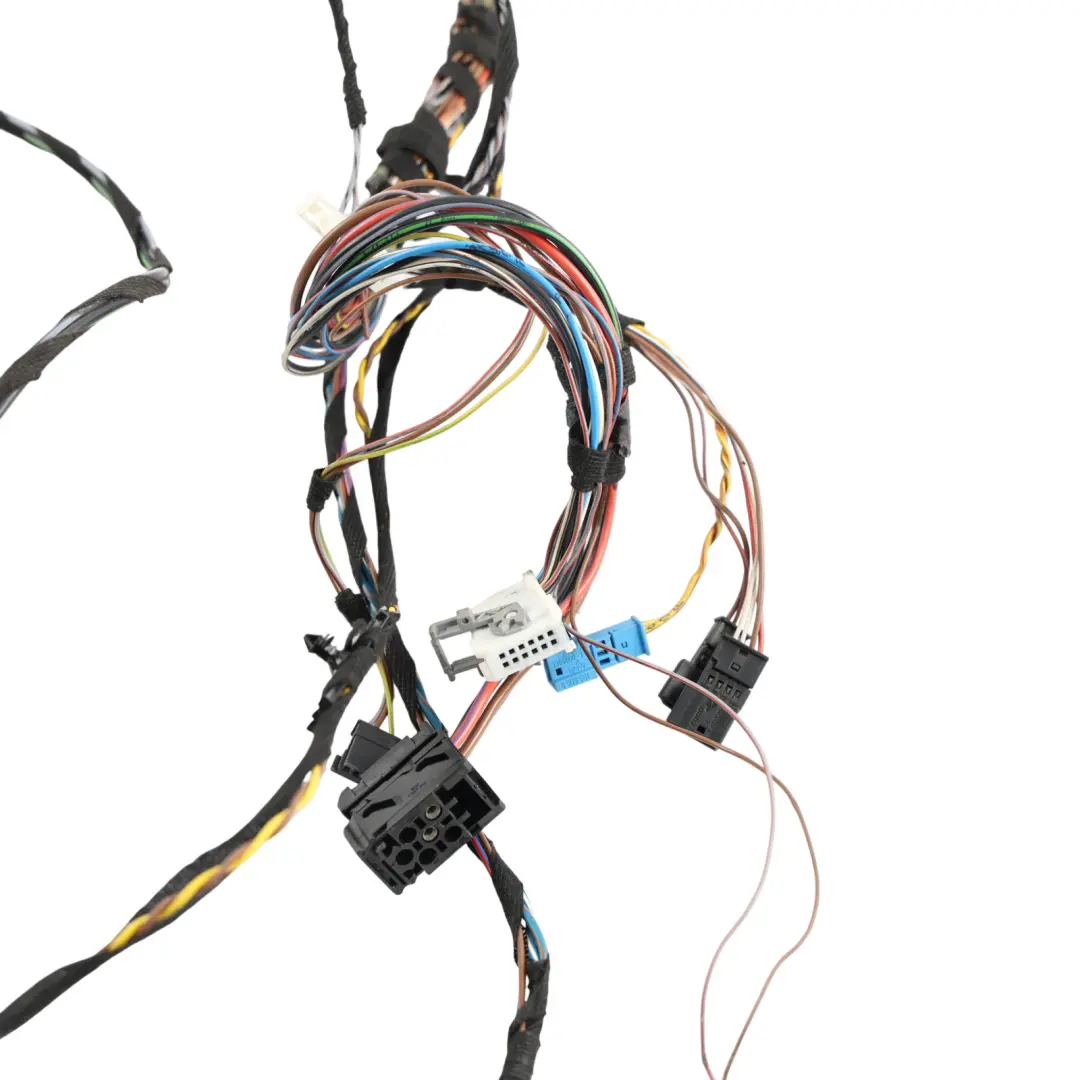

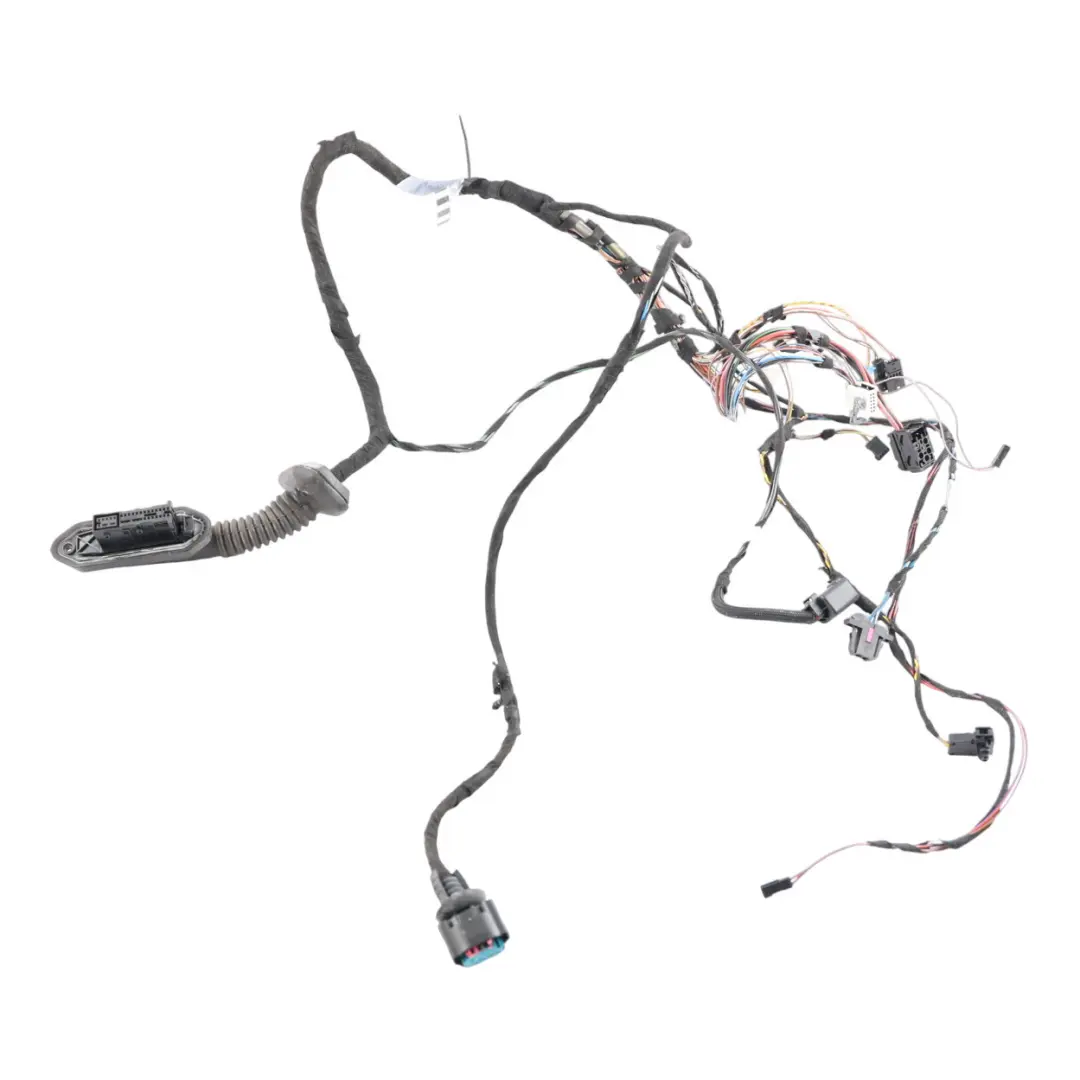

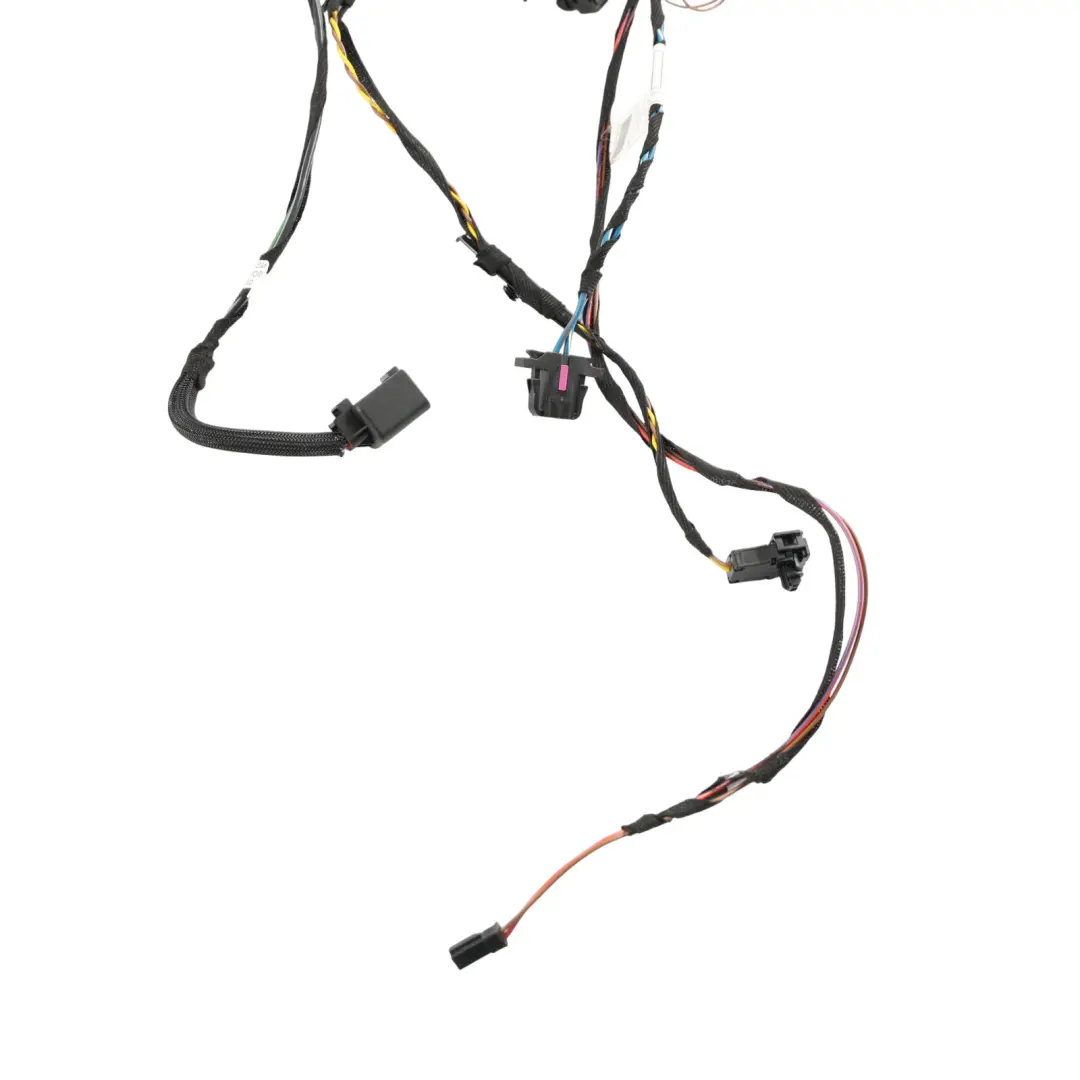

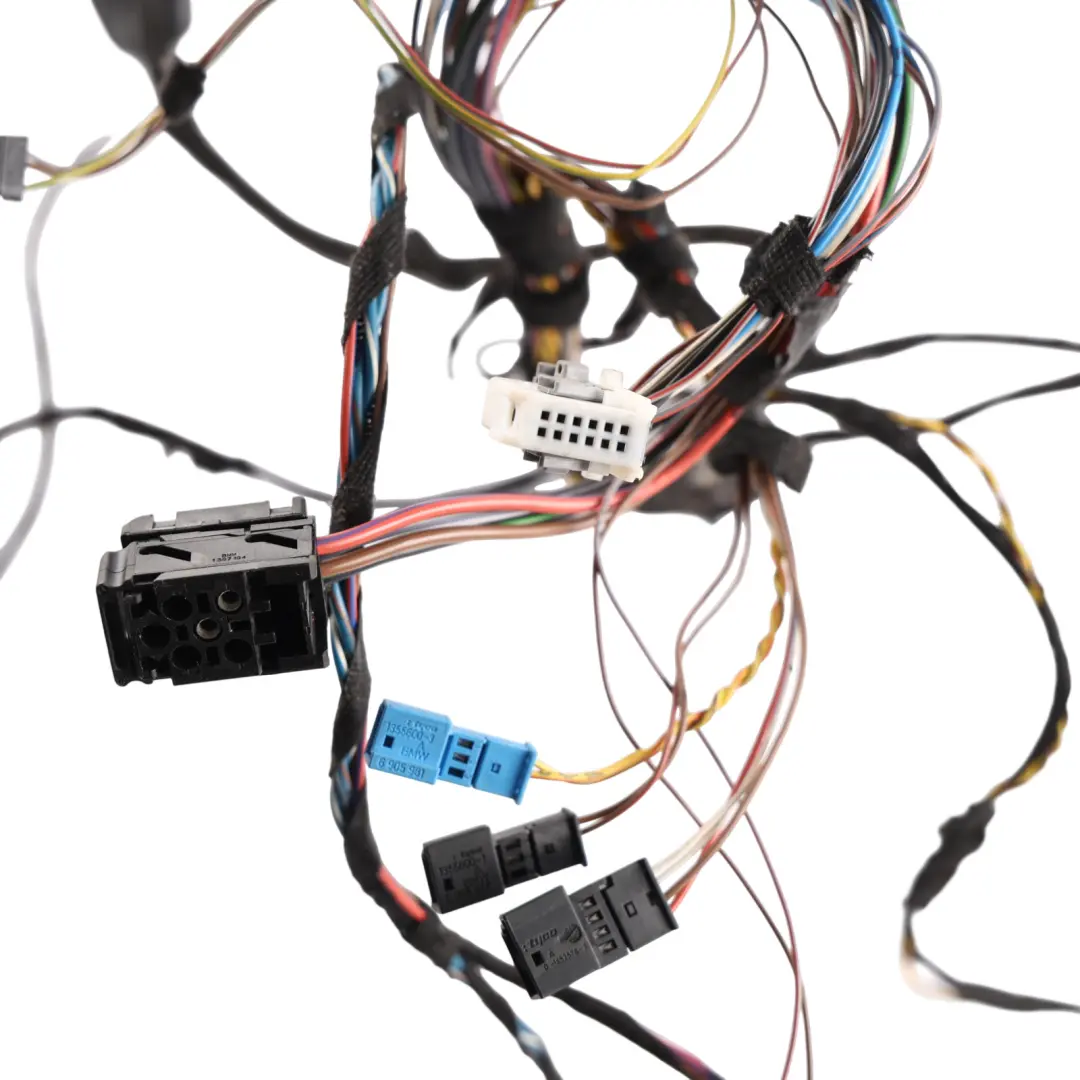

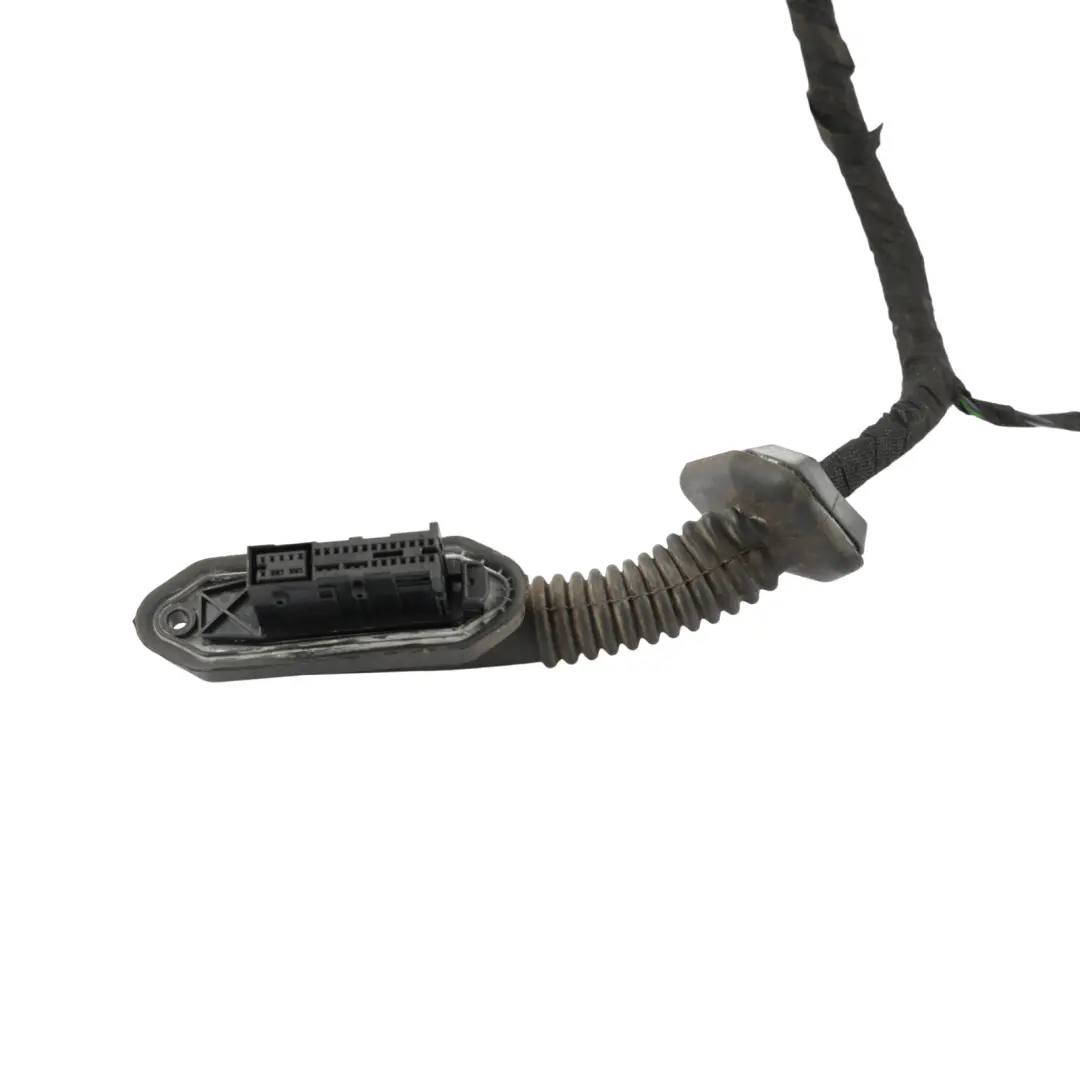

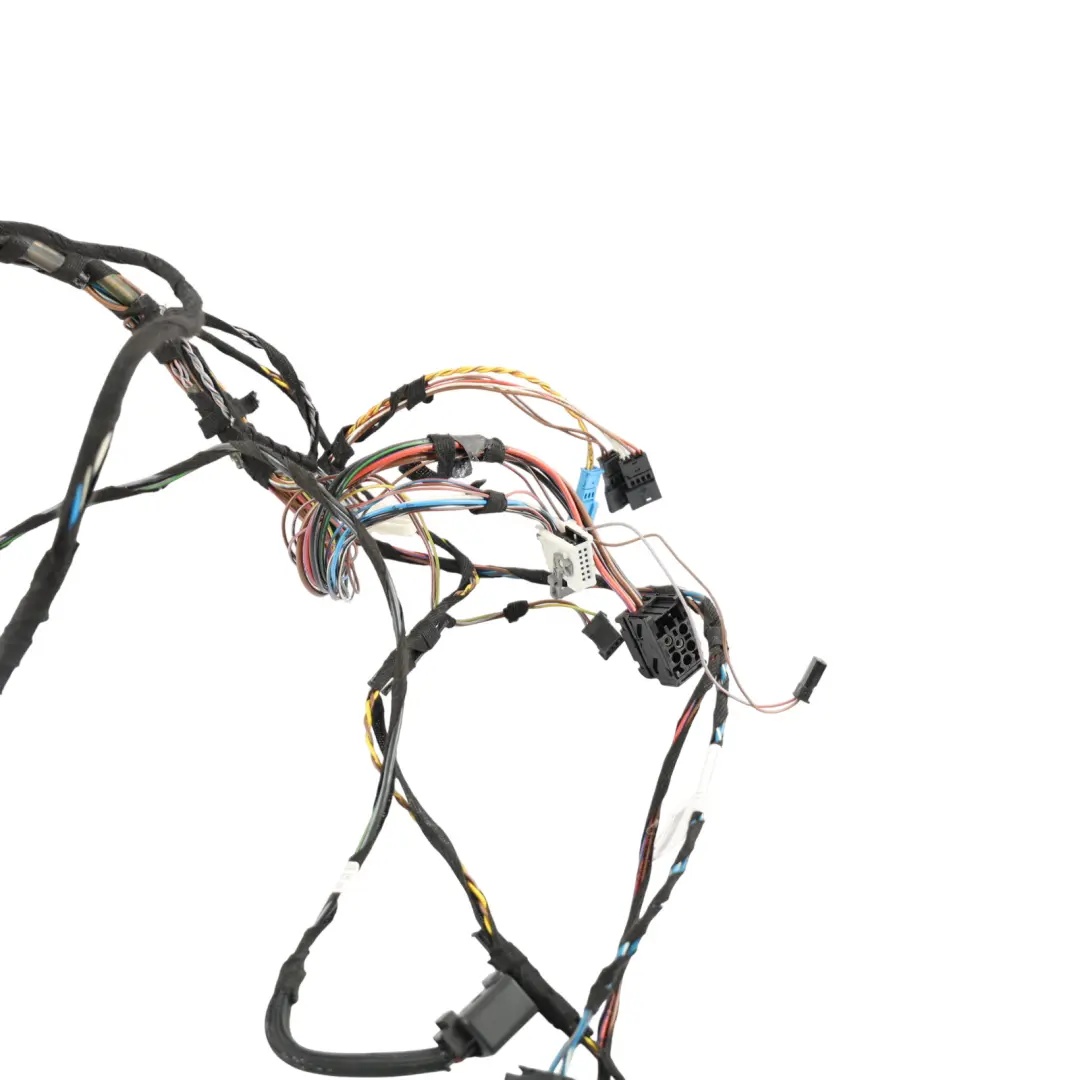

Range Rover L322 Front Door Wiring Loom Harness Driver's Side XH42-14B616-BA

The Range Rover L322 Front Door Wiring Loom Harness Driver's Side is an original Land Rover electrical system component designed for installation on the driver's side. As part of the Wires, harnesses, and connectors group, it ensures a proper electrical connection between the door and the body, which is crucial for the correct operation of window controls, locks, and other door-mounted components.

Specifications and technical data

• SKU: RHD-YMM502241
• Mark: Land Rover
• Condition: Used

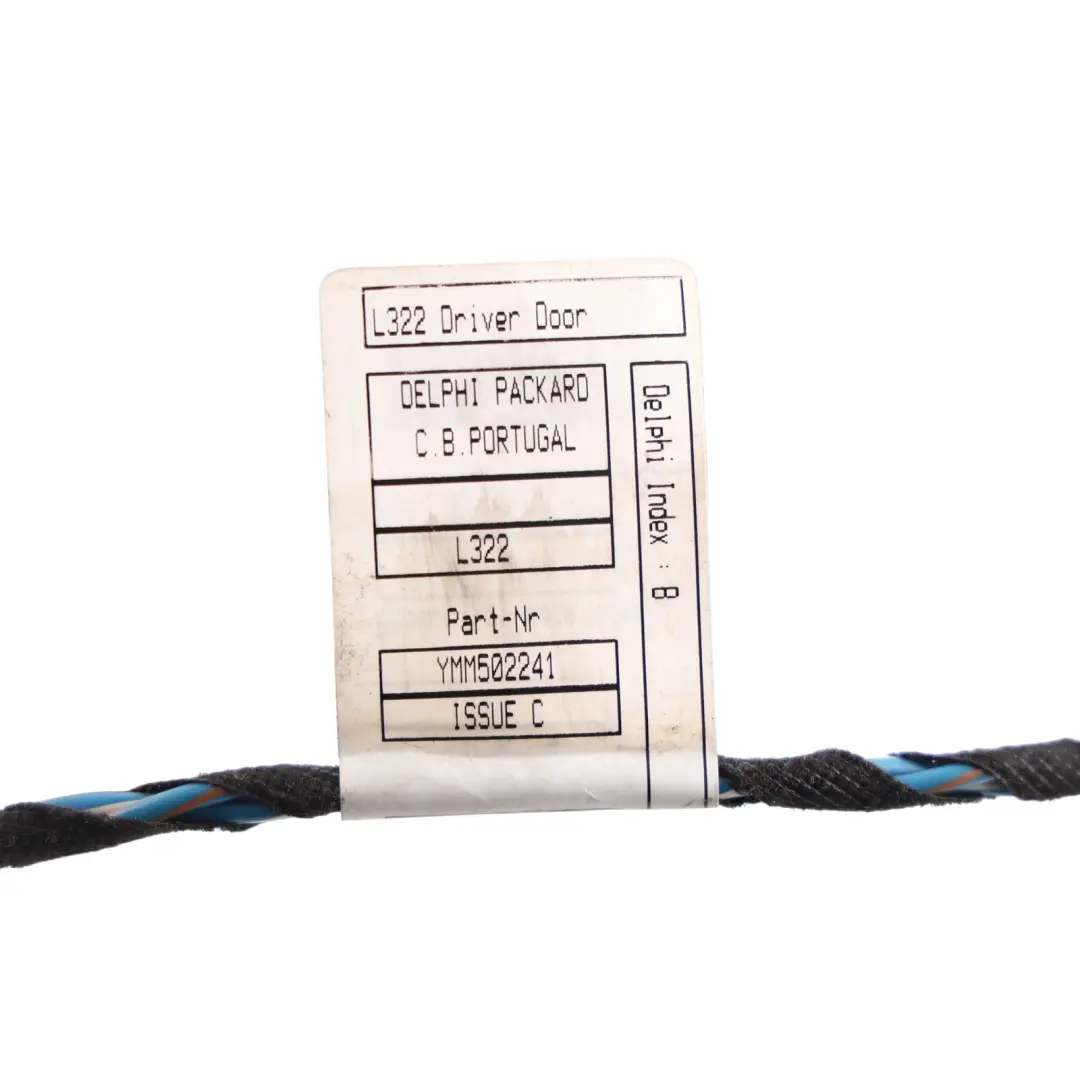

• OEM Part Number: YMM502241
• Substitutable numbers: YMM502241, XH42-14B616-BA, XH4214B616BA
• Location on the vehicle: Front
• Part type: Wire Harness
• Category: Wiring Harnesses, Cables & Connectors

Purpose and function in the vehicle

This door wiring harness is designed for installation in the front body area on the driver's side of the Range Rover L322 model. It is responsible for transmitting signals and power between the body modules and components located in the door, such as window controls, central locking, mirrors, or door lighting (depending on the specific vehicle configuration).

Thanks to the factory-standard cable routing and properly terminated connectors, the harness allows for maintaining the original electrical system architecture, which is essential both for post-accident repairs and for replacing damaged sections of the installation.

Construction and technical advantages

The harness is manufactured as an OEM component, maintaining the factory layout of wires, mounting points, and connector placement. This facilitates installation in the original mounting locations in the door and pillar, without the need for modifications or the addition of extra brackets.

The most important technical advantages include:

• factory connectors matched to the Range Rover L322 electrical system,
• appropriately selected wire cross-sections for individual circuits,
• mounting and routing points as specified by the manufacturer,
• compatibility with the vehicle's original electrical architecture.

As a result, this component provides a convenient plug-and-play solution for the driver's door, reducing the risk of installation errors and electrical diagnostic issues.

Service application and retrofit

The Range Rover L322 Front Door Wiring Loom Harness Driver's Side is suitable both for standard replacement of damaged wiring and for more advanced service work, such as repairs following water damage, connector corrosion, or mechanical damage to wires in the door grommet.

It can also be used in retrofit projects where it is necessary to use an original harness for a specific door configuration. Using an OEM component allows for consistency with factory service documentation and facilitates subsequent computer diagnostics.

If you are interested in the broader context of vehicle modernization using original dismantled components, it is worth checking out our guide on retrofitting and equipment upgrades – you will find practical tips in the article on professional retrofitting with used parts.

Condition and benefits of choosing a used part

The offered harness is a used component sourced from dismantling, which allows you to combine an attractive cost with the preservation of the manufacturer's original specifications. Unlike universal replacements, the factory door harness ensures proper wire length, connector placement, and mounting points, which translates into stable electrical system operation in the long term.

Choosing an original harness from the Wires, harnesses, and connectors group also means a lower risk of compatibility issues and easier identification in Land Rover service documentation, which is important for future repairs or system expansions.

Related Land Rover installation components

If you are planning a comprehensive repair or modernization of the door area in your Land Rover and need other elements from the same group, such as additional harnesses, wire sections, or door installation connectors, check out the available parts in the Land Rover Wires, harnesses, and connectors category.
